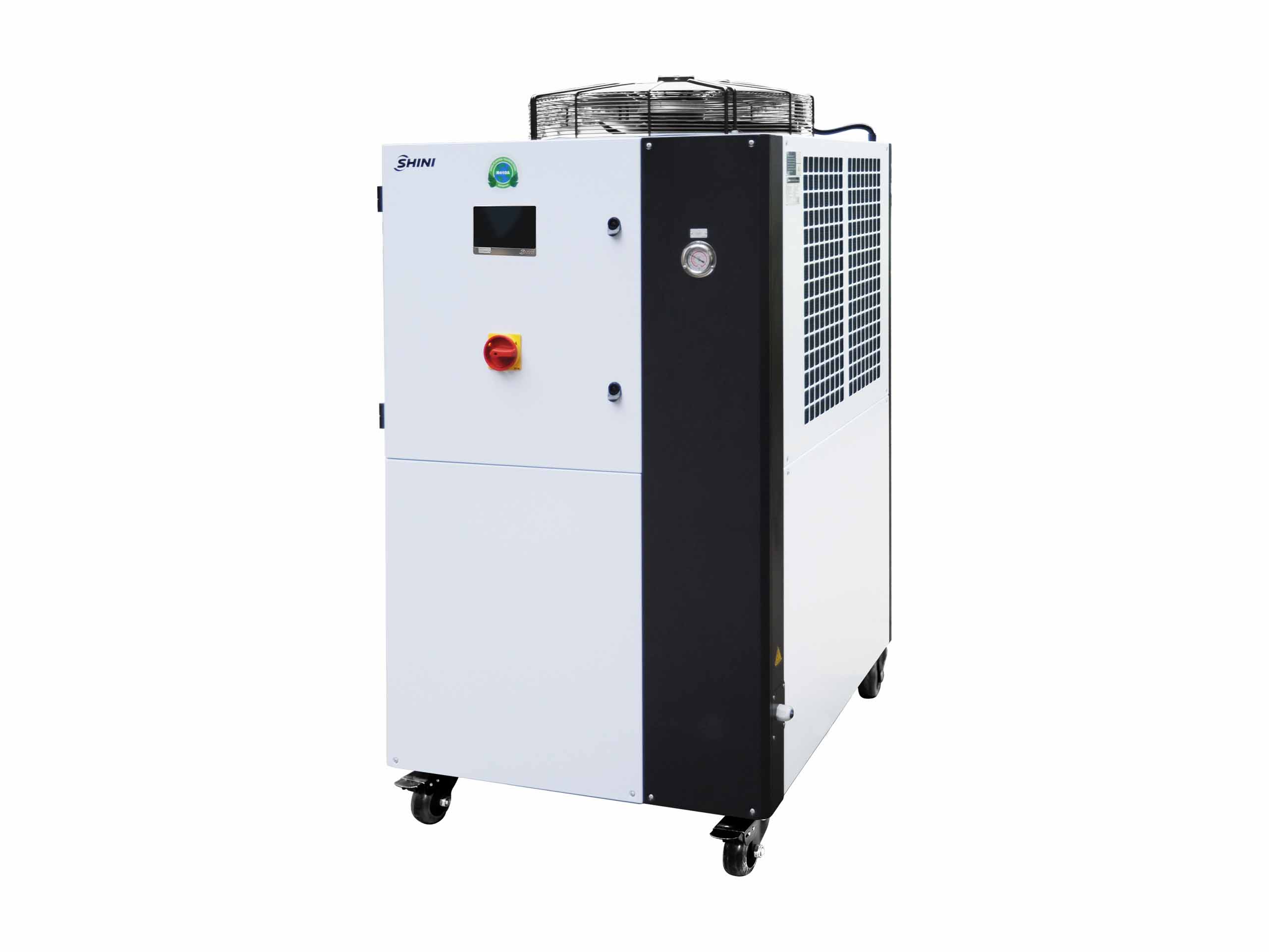

CFC-free Refrigerant Air-cooled Water Chiller SIC-A-R2

DownloadDownload EnquêteEnquête

    • Ventilateur

      Faites passer l'air à travers le condenseur pour échanger de la chaleur avec le réfrigérant.

    • Compresseur

      Le cœur du système de réfrigération, un compresseur scroll très efficace d'un fabricant bien connu.

    • Évaporateur

      Faire le basse température. condensat
      échanger de la chaleur avec le milieu extérieur,
      gazéifier et absorber la chaleur pour réduire la température moyenne.

    • Condenseur

      Utilisez de l'air froid pour vous rafraîchir,
      et condenser la haute température.
      et le gaz à haute pression du compresseur, et le condenser en liquide.
    SIC-A-R2 series are applicable for cooling moulds to reduce products molding cycle; also they are available in the cooling of equipments in order to maintain a normal temperature. Besides, they are suitable for other industries with the need of cooling.

    Caractéristique

      Standard configuration
    • Cooling range 7~25℃
    • Stainless steel insulated water tank.
    • Equipped with anti-freeze thermostat.
    • Adopt R410A refreigerant, used to improve coefficient of performance(COP) and R410A is ozone-friendly.
    • Refrigeration loop controlled by high and low pressure switches to ensure stable operation.
    • Compressor and pump overload protection.
    • Adopts precise Italian temperature controller with and accuracy of ±1℃.
    • Low pressure pump is standard configuration.
    • All adopt quality compressors from major supplier.
    • Adopt fin style condenser design. Without any need of cooling water for excellent heat transfer and rapid cooling.
      Accessory option
    • Medium and high pressure pumps are optional to meet any pressure requirements.
    • Level sensor of water tank is available to detect water level.
    • Hot-air bypass valve can be opted to reach the accuracy of ±1℃.
    • Solenoid valve is optional to prevent evaporator freezing by cutting the refrigerant immediately after downtime.
    • Refrigerant indicator can be opted to detect the refrigerant and ensure its quality and water ratio.
    • Optional flow wsitches to detect chilled water flow.
